The else case is handled using an exit called <Other>. To add it, right-click Branch, and select it from the Add Element sub-menu.

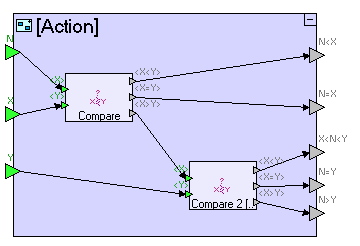

More complex expressions are handled using a combination of Math templates, in you case it seems you'll want to use 2 Compare's, as illustrated in the following screenshot:
The above illustrates the case of N, X & Y, but can be extended and changed as needed.
Regards,
David
