Tersus: Re: if statement

Re: if statementDate: Nov 10, 2012Hi,

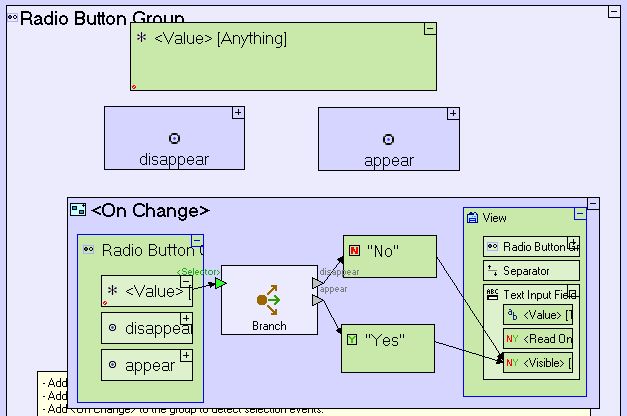

input field appear.tersus I'm a new user. I read and follow the Tutorials http://www.tersus.com/#Id=6344 "Step By Step Tutorial""ShoppingList [version 2.1.8]""Table Wizard [version 2.1.8]"I feel build project follow Tutorials very useful.I don't understand your purpose much. I built a demo above, a screenshot:

I think we may use "Flow Control" and <On ***[situation]> to achieve "if...then..." and "select...case...". Distinguished Element Names: http://www.tersus.com/#Id=3182 I leaned a important thing about flow control in Shopplist Tutorial：

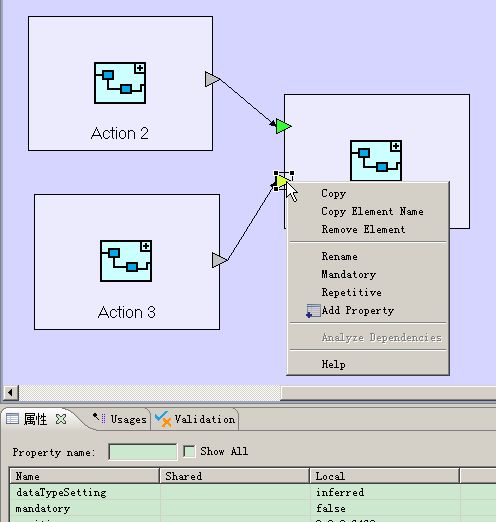

I always expected wrong logical relationship until I known the default trigger in tersus has a "true" mandatory property. Rightclick the trigger may change it quickly.The default "true" mandatory trigger means the input flow data must need, if there is no data out (For example, a input field was not input) of the exit data of Action 2 in picture above, the Action has two triggers input would not run.But sometime we want only a data flow , if data was null the next action should also run. We must set the mandatory "false". (Like Action 3 exit to next Action)See Also:
