Tersus: Re: Get Element Name

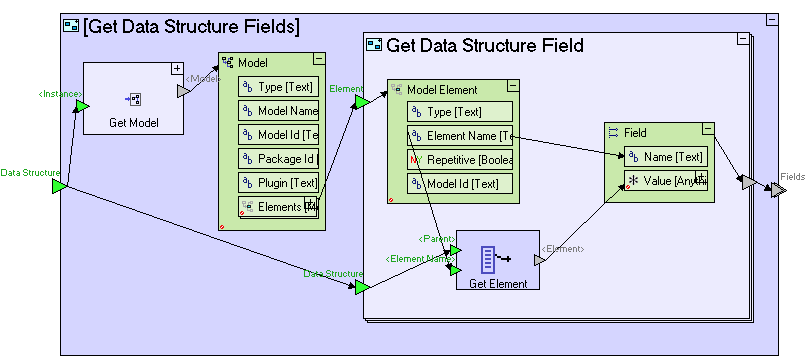

Re: Get Element NameDate: Feb 6, 2013Hi Bob,Get Element Name supports display elements (which is why it is located in the Display Actions category).An alternative, which may allow you to implement what you want, uses model introspection to convert your data structure to a repetition of Field elements, each containing the name and value, as demonstrated in the following screenshot:

Some pointers:

Use Miscellaneous/Get Model to retrieve the data structure's Model structure, containing a repetitive Elements sub-structure, one for each element in the data structure (both the Model structure and the Model Element sub-structure are predefined structures from the Common library (use right-click > Show in Repository Explorer on the relevant model to locate them).

Use Miscellaneous/Get Element to retrieve the value of a specific sub-element by name.

Regards,DavidSee Also:
